The following project specific settings can be displayed and changed in the Project Settings tab:
Project settings |
|
Simulation settings |
|
Target system settings |
|
Settings for text and graphics editor tools used |
|
User specific settings |
|

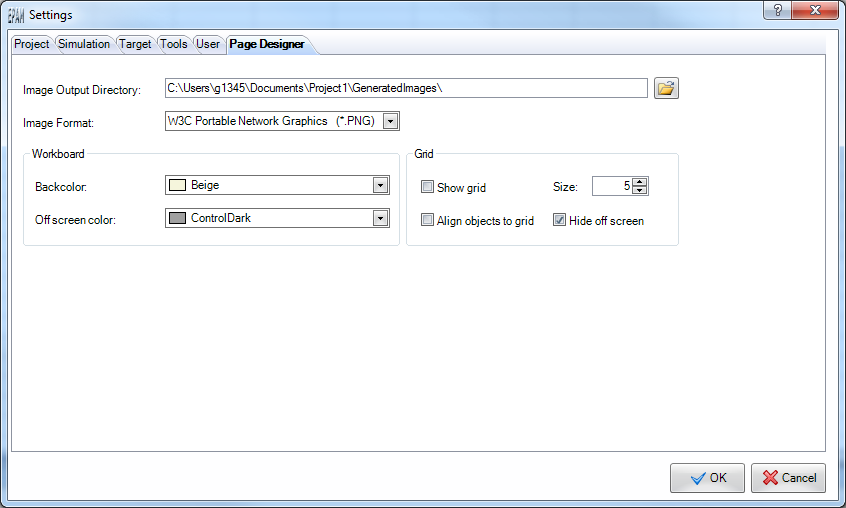

Page Designer specific settings |

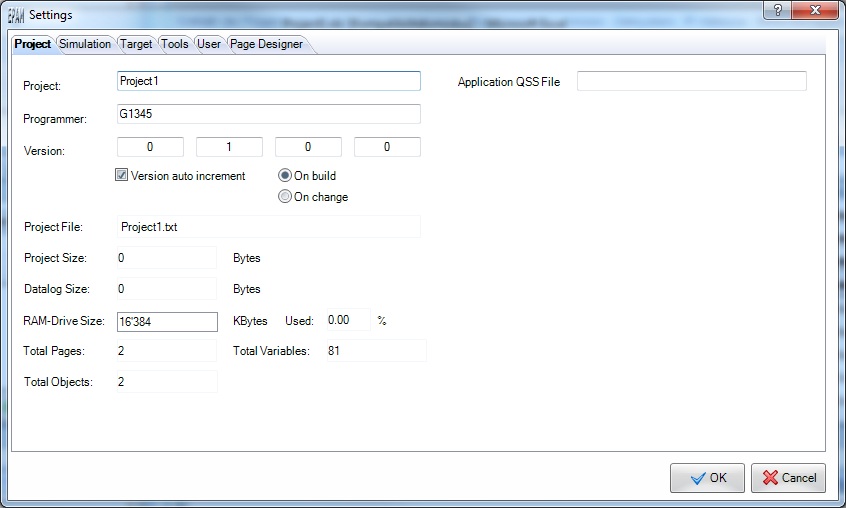

Contains the project settings such as project name, programmer, version, target system, IP address, screen resolution, as well as project information such as size, number of pages, number of variables etc.
The Application QSS File field enables a Qt Style Sheet file to be specified. This file enables default settings of Qt objects, such as scroll bars to be changed globally for the entire project.
See also System variables

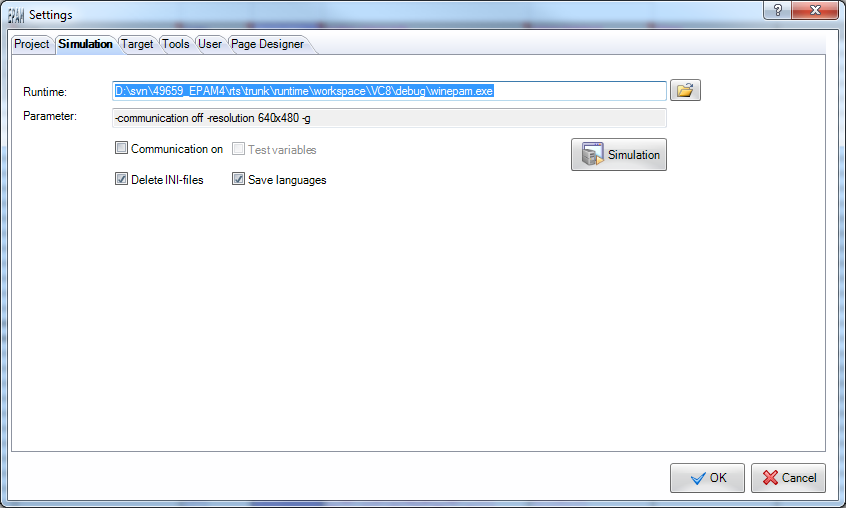

Contains the path to the EPAM4 runtime (winepam.exe) as well as the Parameter command line for the simulation.
Runtime |
Path to the EPAM4 Runtime (winepam.exe) |
Parameter |
Startparameters for the simulation ( read only) |
Communication on |
Communication on for simulation |
Test variables |
Read all variables on simulation start. For testing purpose. A message box notifies about read errors. With this option, on the startup may take very long. Depending on variable count and read errors. |
Save Languages |
Saves also language-dependent files for Simulation and Download |
Simulation |
Start the simulation... |

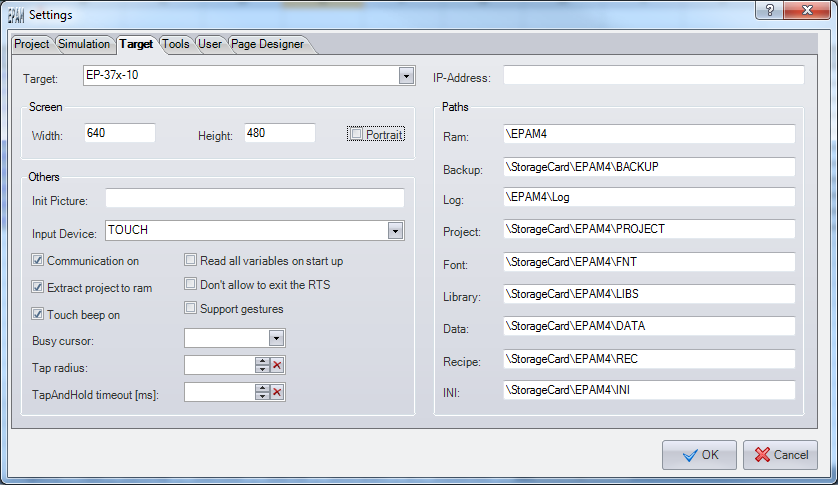

Target |
Target device for the project |
||||||
IP-Address |
IP-Addresse of the target device Used for download and communication |
||||||
|
|||||||
Screen |
Display resolution of the target device |
||||||
|
With in pixel |
||||||
|
Height in pixel |
||||||
|
Portrait, swaps width and height |
||||||
|
|||||||
Paths |
Target specific directories, normally not to be changed |
||||||
|
Directory in the ram filesystem |
||||||
|
Directory for backup files |
||||||
|
Directory for log files, eg. Datalog |
||||||
|
Directory for extracted project. Not relevant if "Extract project to ran" is set. |
||||||
|
Font files are copied to this directory, therefore they have to be downloaded only once. |
||||||
|
Directory for EPAM4 libraries |
||||||
|
Directory to exported files into. E.g. Datalog, Alarm |
||||||
|
Directory to store recipe files |
||||||
|
Directory to store remanent date. like systemvariables and alarmbuffer,.. |
||||||
|
|||||||
Init Picture |
Optional path and name of an image file that is displayed centered on the screen when the RTS started. E.g.: \StorageCard\logo.bmp |
||||||
Input Device |
|
||||||
Communication on |
Enable the communication to the PLC |
||||||
Extract project to ram |
Extract the project into the RAM Directory. This accelerates the project file access and leads therefore to a faster screen page loading. |
||||||
Touch beep on |
Activate the "Touch Beep" used as feedback for the operator. |
||||||
Read all variables on start up |
Read all variables on RTS startup. Use for testing purpose only! The startup may take very long, depending on variable count and read errors. A message box notifies about read errors. |
||||||
Don't allow to exit |
Prevent toe exit the RTS, for example with the ESC-Key. |
||||||
Support gestures |
Switch the RTS into the Gesture-Mode |
||||||
Busy Cursor |
|
||||||
Tap Radius |
Relevant only with Gesture-Mode on. Specifies the circle in which an Tap-Gesture may be detected. If empty, the default is 25 pixel. |
||||||
TapAndHold timeout [ms] |
Duration a Button has to be pressed until a TapAndHold gesture is fired. 0 is equivalent to the default value of 700 ms |
||||||
|
The Target settings are saved in the EPAM.INI file and are copied to the target system in the EPAM project directory.

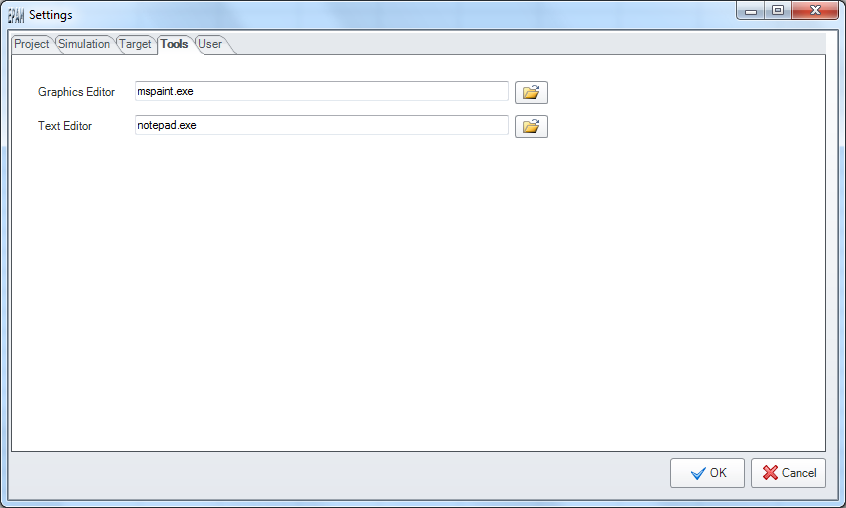

The path to the text and graphics editor used can be defined here. (Default: Paint and Notepad)

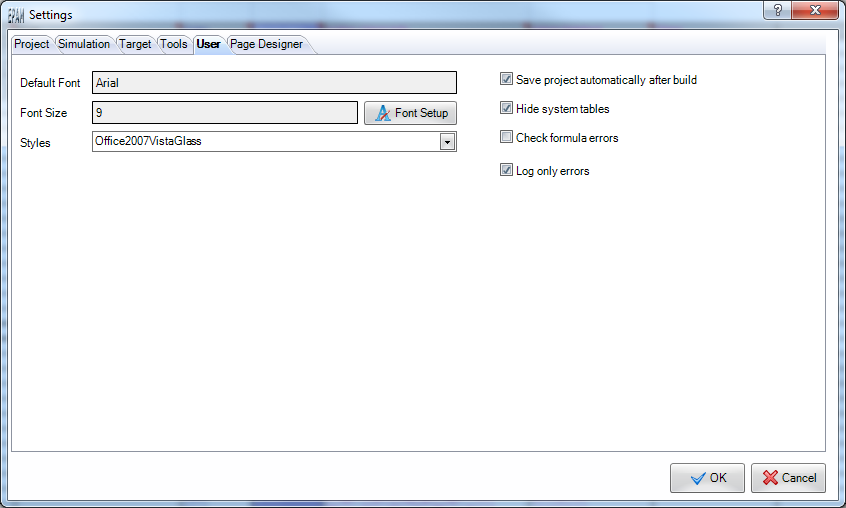

User
Default Font |
Defines the font used in the project worksheet when new objects are inserted. |
Save project automatically after build |
Save the XLS file after a build |
Hide system tables |
Hides the system tables in the project |
Check formula errors |
While text files are generated, excel formulas are checked for errors. Errors are displayed in the "Warning/Error" view. |
Log only errors |
Only errors are logged into C:\Users\<username>\AppData\Roaming\Grossenbacher\Epam4\IDE\EpamLog.txt else debug information as well. |
Image Output Directory |
Default directory for "save active container as image" |
||
Image Format |
Imageformat for "save active container as image" |
||
Workboard |
|||
|
Backcolor of the workboard |
||
|
Color to cover the off screenn area |
||
Grid |
Snap grid |
||
|
Show snap grid |
||
|
Width |
||
|
Snap objects to grid |
||
|
Cover the off screen area |
||
