Simulating the application on the development PC

Top  Previous  Next

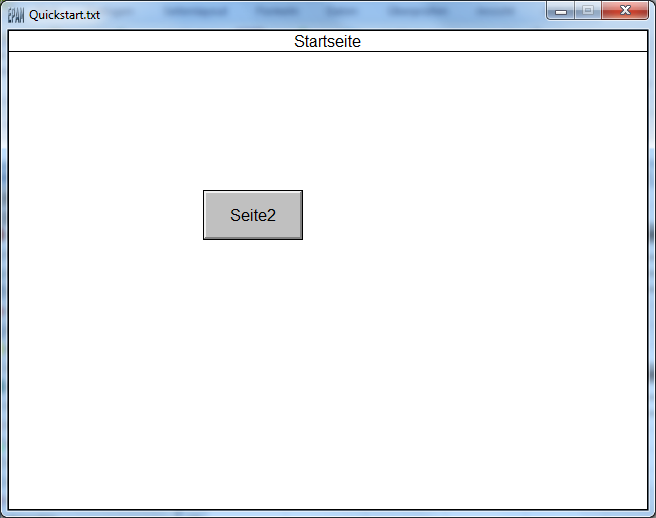

The Start Simulation function enables the simulation tool to be started at any time on Windows in order to test the application. The application can be operated with the mouse. If the PLC option is active, communication to the PLC is also activated. (this function depends on the communication drivers selected)



quickstart_simulation1

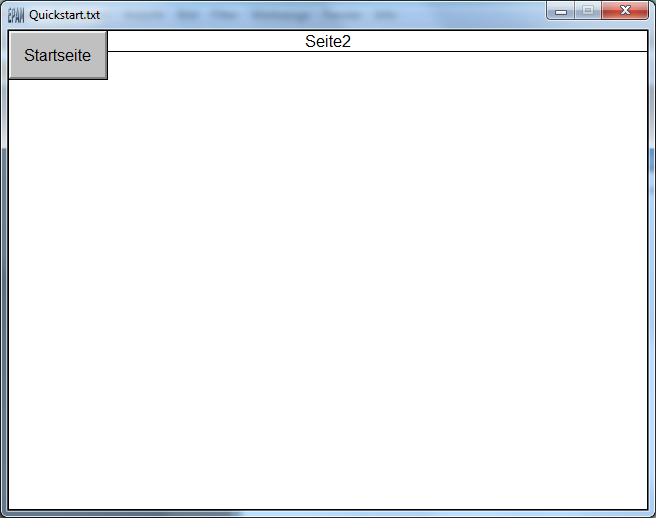

Clicking the "Page2" button activates the #Page=Page2:



quickstart_simulation2



Clicking the "StartPage" button activates the #Page=Start:
